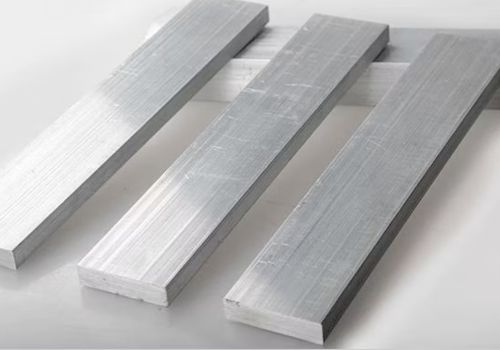

Vedanta Aluminium is a leading manufacturer and supplier of Aluminium 5754 Flat Bars in Mumbai, India, known for its commitment to customer satisfaction, innovation, and quality. With state-of-the-art production units and global standards, Vedanta Aluminium provides high-grade 5754 aluminium flat bars employed in various industries. Vedanta Aluminium strives to provide corrosion-resistant, long-lasting, and accurately engineered aluminium products designed to cater to industry needs. Thanks to its robust distribution network and technical expertise, Vedanta Aluminium makes timely delivery and guaranteed solutions to customers in the construction, marine, transport, and other major sectors in India as well as in global markets.
Vedanta Aluminium’s Flat Bars of Aluminium 5754 consist predominantly of aluminium with magnesium content between 2.6% and 3.6%, improving corrosion resistance and weldability. The alloy has trace amounts of chromium, manganese, and iron. 5754 grade has fine mechanical properties such as tensile strength of 220–330 MPa, yield strength around 130 MPa, and elongation of up to 12%. It also possesses better fatigue strength and high workability and is perfectly suited for both structural and marine usage. Vedanta Aluminium produces each batch of products with consistent quality and mechanical behavior.
Standards : ASTM B221, B211, B565, B316, AMS 4121 5754
Temper :O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 100 mm To 3000 mm Long & Above, Random, Fix & Cut Length or as per clients’ requirement
Size : 5 mm To 500 mm
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other | AI | |||||||||||
| 5754 | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | balance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.60 | 3.60 | 0.0 | 0.50 | 0.0 | 0.40 | 0.0 | 0.40 | 0.0 | 0.30 | 0.0 | 0.20 | 0.0 | 0.15 | 0.0 | 0.10 | 0.0 | 0.05 | 0.0 | 0.15 | |||
| Alloy | Temper | Thermal conductivity | Coefficient of thermal expansion | Melting point | Elastic modulus | Electrical conductivity | |
|---|---|---|---|---|---|---|---|
| W/m*K | µm/(m*K) | Min | Max | KN/mm2 | %IACS | ||
| 5754 | H22 | 132 | 23,7 | 595 | 645 | 70 | 32,5 |
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 23,7 | 595 | 645 | 70 | ||||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| AW-AlMg2.5 | Al-Mg.2 | A95754 | 3.3535 |
Vedanta Aluminium based in Mumbai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5754 Flat Bars to meet specific project needs. Our team at Vedanta Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@vedantaluminium.co.in
Vedanta Aluminium’s Flat Bars 5754 are used widely across industries because of their corrosion resistance, strength, and weldability. In the marine industry, they are suitable for shipbuilding and offshore platforms as they resist seawater corrosion. In the automotive and transportation industries, they find application in body panels, truck trailers, and fuel tanks. Construction companies use these bars in architectural structures and infrastructure projects. In addition, they are apt for chemical industry pressure vessels, storage tanks, and pipelines. Vedanta Aluminium’s high-quality flat bars are capable of handling the tough demands of domestic as well as international applications.
