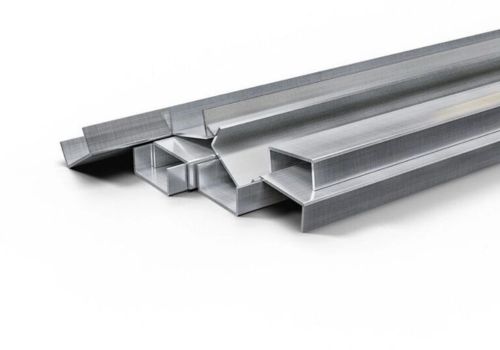

Vedanta Aluminium, one of the leading aluminium producers and suppliers from Mumbai, India, is well known for providing high-quality aluminium products, such as the Aluminium 1050 Channel. With state–of-the-art manufacturing plants and an unwavering focus on innovation and sustainability, Vedanta Aluminium provides accurate engineered solutions to a broad spectrum of industries. The Aluminium 1050 Channel is a very versatile product prized for excellent formability, high thermal conductance, and corrosion resistance. Vedanta provides dependable quality, on-time delivery, and competitive pricing and thus has been a preferred supplier to customers in the construction, electrical, automotive, and general engineering industries in India and abroad.
Aluminium 1050 Channel is made up of 99.5% pure aluminum with residual elements like iron (Fe ≤ 0.4%), silicon (Si ≤ 0.25%), and other minor constituents. This grade falls under the non-heat-treatable aluminium group, which has good corrosion resistance and ductility. The tensile strength of this material is 60–95 MPa, and it can elongate up to 35%. The Brinell hardness of this material is around 20 HB, and it possesses good electrical conductivity (up to 61% IACS). For these reasons, Aluminium 1050 is best suited for bending, forming, and non-structural components.
Specifications: ASTM B211 / ASME SB211
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Thickness: 0.91mm to 10 mm
Length: 10 to 12 Feet or as per clients’ requirement
Width: 9.5 mm X 9.5 mm To 150 mm X 75 mm or Custom

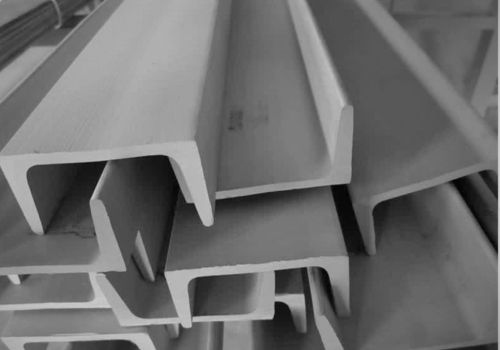

Finish: Mill, Customer specific finish

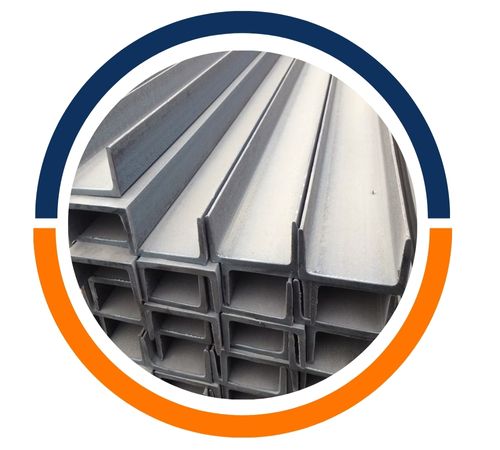

Surface: Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

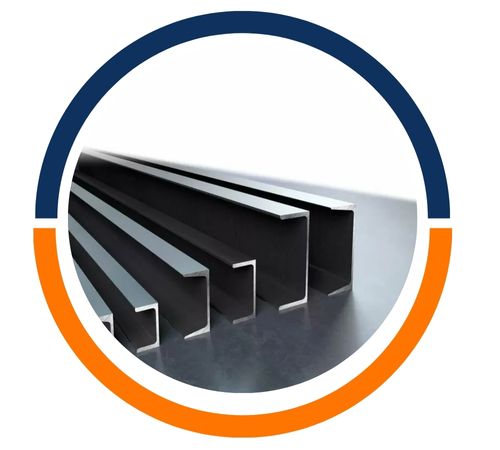

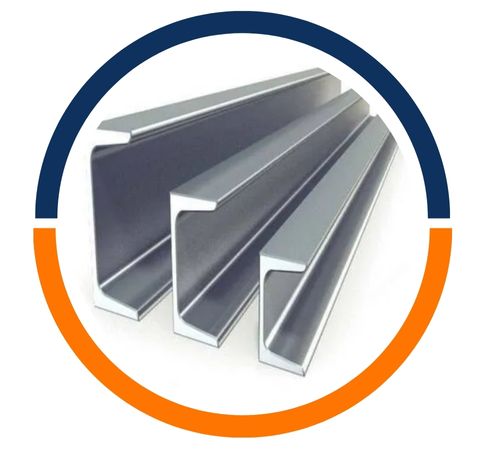

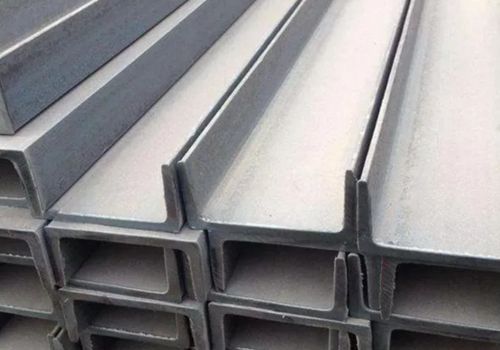

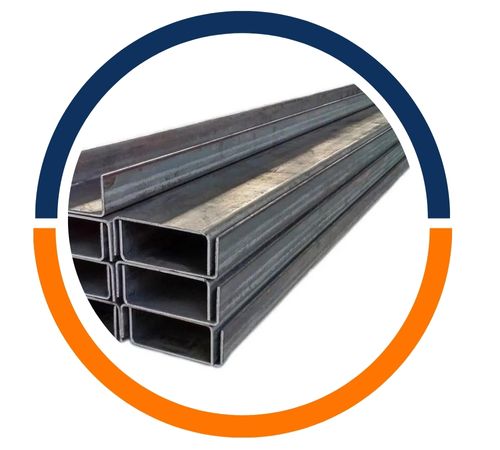

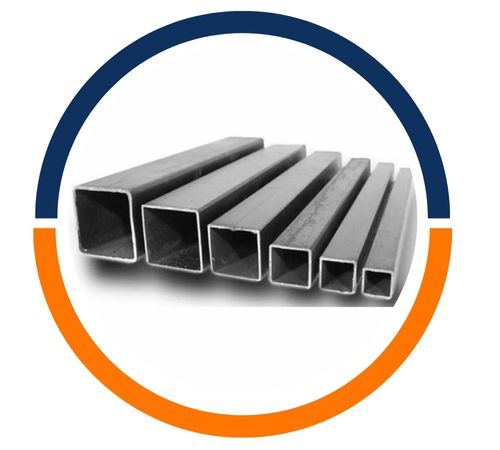

Form: C-Channel, Box-Channel, U-Channel, J-Channel, Hat Channel, Strut Channels, Miscellaneous Channels
Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Vedanta Aluminium based in Mumbai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian | NORTH AMERICA | WNR |
|---|---|---|---|---|---|---|---|---|

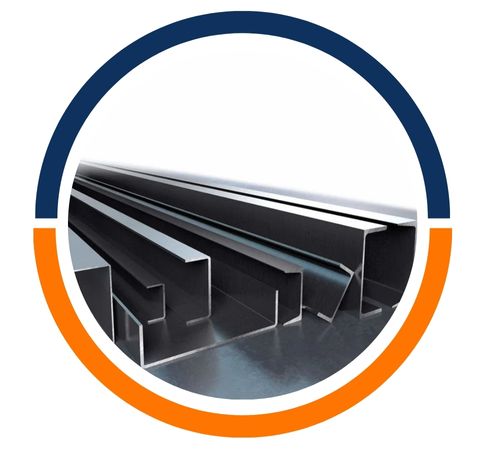

| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S | UNS A91050 | 3.0255 |
Yes, we offer custom sizes for Aluminium 1050 Channel to meet specific project needs. Our team at Vedanta Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@vedantaluminium.co.in
The Aluminium 1050 Channel is much employed in industries needing good corrosion resistance, high ductility, and high thermal and electrical conductivity. Busbars, electrical enclosures, HVAC equipment, reflectors, signage frames, and architectural decorative trim are common uses. It is also favored in general fabrication, sheet metal work, and load-free structural applications by virtue of its easy formability. Where chemical and food industries are concerned, its non-toxic quality positions it in line with equipment and processing line requirements. Recyclable and light, Aluminium 1050 Channel helps forward sustainable design and engineering solutions while maintaining alignment with industry requirements for efficiency and environmental stewardship.
